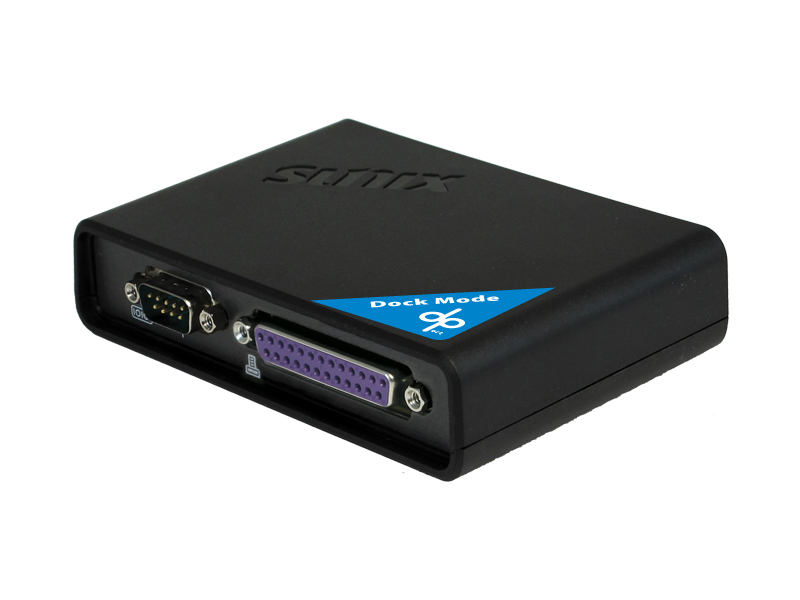

Sunix Deviceport Dock Mode Ethernet Enabled Rs-232 & Printer Port Replicator

SUNIX DevicePort is the ideal choice to enable your current Legacy I/O devices networking. DPKM11H00 allows users to expand both RS-232 and printer ports over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. With SUNIX DPL2000Q High-Performance Ethernet-UART/Printer controller and exclusive I/O redirection technology, DevicePort creates physical COM and LPT ports that support real time data communication and Ethernet-COM/LPT port hot-plug capability; user can expand legacy port easily without complex software configuration that improves deployment efficiency to achieve greater reliability in commercial and industrial automation applications. Features- Expands RS-232 COM and Printer LPT ports over Ethernet networking.- Works as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.- DevicePort Dock mode supports secured connection between PC host and DevicePort.- Built-in SUNIX DevicePort DPL2000Q High-Performance Ethernet-UART/Printer controller.- SUNIX DevicePort proprietary Ethernet I/O Redirection Technology. (*Note 1)- Port auto-mapping with real time data transmit and receive communication.- Physical COM and LPT port accessed via device manager.- Up to 256 COM and 3 LPT ports working on windows system simultaneously.- Accesses tradition COM and LPT port by using existing software and AP .(*Note 2)- Low power consumption design for Green Environment.- 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard. Specifications: Serial CommunicationInterface: RS-232Baud rate: 50bps ~115.2KbpsController: SUNIX DPL2000QStop bit: 1, 1.5, 2BUS: Ethernet Parity: even, odd, none, mark, spaceNo. of Serial ports: 1-port Flow Control: Xon/Xoff (software)FIFO: 1Kbyte Hardware / per portConnector DB9 Male Parallel CommunicationInterface: IEEE1284  Printer Support (*Note 2)No. of Port 1-portFIFO 1Kbyte Hardware / per portSpeed Maximum 2.7MBpsPCB Connector DB25 Female

Ethernet I/O Redirection technology is SUNIX proprietary protocol for COM, LPT, and digital IO expansion over categpry6/5 Ethernet cable. 2. LPT port does not support LPT Key Locker and other Parallel devices, but Printer only. It does not support legacy 278/378/3BC ISA address either. Product Link
