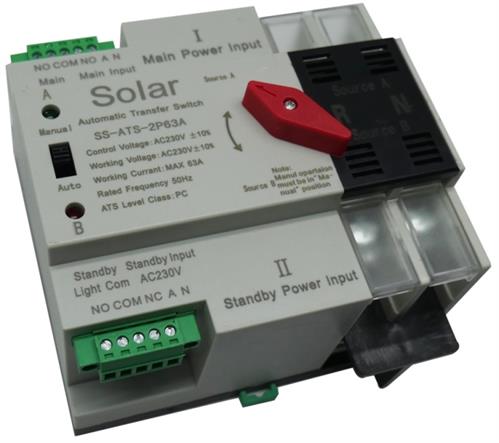

Dual Power Ats 63A 2 Pole Automatic Change Over Switch Kit Rail Mount Unit Use With Inverter Installations Solutions Rated Current Maximum 63A

Solarix Dual Power ATS 63A 2 Pole Automatic Change Over Switch Kit Rail Mount Unit, Use With Inverter Installations Solutions, Rated Current Maximum 63A, Manual or Automatic Operation, Working Frequency 50HZ/60HZ, Retail Box, No warranty
Product Overview
The Solarix Dual Power ATS 63A 2-Pole Automatic Change Over Switch Kit Rail Mount Unit is designed to automatically flicks over to the Inverter and battery backup supply when the power is turned off during load shedding and back to Eskom utility power when power is restored, Even though it is designed to also work with generators it is not designed to automatically start your generator but will flick over to the generator the moment the generators is started.

It's suitable for Single Phase dual power grid with AC 50Hz, Rated Voltage Ue AC 400V/240V , Insulation Voltage Ui AC 600V and rated current up to maximum of 63A.

Highlights
 Dual Power ATS 63A 2 Pole Automatic Change Over Switch Kit
 Use with Inverter Installations Solutions
 Rated Voltage Ue AC 400V/240V
 Insulation Voltage Ui AC 600V
 Rated Current Maximum 63A
 Manual or Automatic Operation
 Working Frequency 50HZ
 Rail  Mount Unit Uses and Wiring:
Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.
Press the button to Manual, Then you have to switch the Direction manually.

Specifications
Stock Code SOLSSATS2P63A
Description Solarix Dual Power ATS 63A 2 Pole Automatic Change Over Switch Kit
Product Type Rail Mount Unit Level
Rated Operation 6/10/16/20/25/32/40/50/63A
Rated Operation Voltage 220V (2-Pole)
Tripping Current 5-10 in ( Type C) 10-15 IN (Type D)
Working Frequency 50HZ
Short Circuit, Overload, Open Phase And Loss Of Voltage Protection
