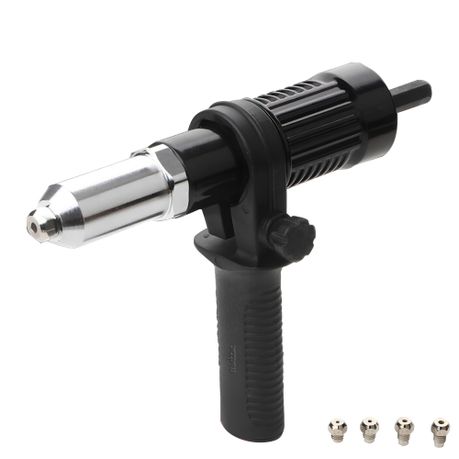

Rivet Drill Adapter With Handle

Features

Description

Vertical handle grip, labor-saving, durable chrome-molybdenum steel (CrMO) gun head.Transforms your cordless screwdriver / drill into the strongest rivet gun for pop rivets.Equipped with a detachable handle for more stable and controlled operation assistance.Riveter Adapter is suitable for all types of blind rivets with a shank diameter of: 2.4 / 3.2 / 4.0 / 4.8 mm.Electric Rivet Gun Adapter Quick Start GuideThank you for purchasing this product!

To ensure smooth operation and avoid jams or damage, please take 2 minutes to read this guide before use. Correct operation can extend the adapter's lifespan to over 10,000 cycles.Important! Must-Read Before Use (Core Tips to Prevent Jams)99% of "broken after first use" cases are actually due to unremoved broken mandrels stuck inside the nosepiece, not product failure.Please follow the steps below carefully.

Detailed Operating Steps:Step 1: Select the Correct Nosepiece- Choose the nosepiece that matches the diameter of your rivet mandrel(typically 3.2mm, 4.0mm, etc.).- Critical: Do not use a large nosepiece for a small rivet! Otherwise, the broken mandrel cannot eject smoothly and will likely get stuck.Step 2: Install the Nosepiece- Screw the selected nosepiece onto the front of the adapter.

Tighten by hand only (no need to over-tighten).- Ensure it is installed securely without wobbling.Step 3: Insert the Rivet- Insert the rivet completely into the nosepiece until the rivet head touches the end face of the nosepiece.- Insert the rivet mandrel into the hole of the workpiece to be joined.

Hold the nosepiece vertically and firmly against the workpiece surface.Step 4: Riveting- Press and hold the switch of the electric rivet gun until the rivet mandrel breaks with a "click" sound.- Release the switch immediately to prevent the motor from running idle and damaging the internal collet.Step 5: Clear the Broken Mandrel (After Each Riveting Cycle)- After the mandrel breaks, it usually remains inside the nosepiece.

Clean it promptly after each operation to prevent accumulation and jamming.- Cleaning Method: 1. Turn off the electric rivet gun. 2. Unscrew the front sleeve of the adapter (or directly unscrew the nosepiece). 3. Use the provided ejector pin/thin iron rod to push the broken mandrel out from the front (nosepiece opening) towards the back. 4.

Reinstall the sleeve/nosepiece. It's ready for use again.- Never poke from the back, as this may damage the internal jaws.Frequently Asked Questions:Q: Why does it work fine the first time, but then loses power or jams the second time?A:This is a classic case of not clearing the broken mandrel.

Accumulated mandrel pieces inside the nosepiece hinder the collet's normal operation. Simply clean it following Step 5 to restore function.Q: What if the rivet gets stuck or won't pull out during riveting?A:1. Immediately disconnect power.2. Unscrew the front sleeve and use the ejector pin to push the broken mandrel out from the front.3.

Check if the nosepiece matches the rivet diameter; replace if mismatched.4. If jamming persists, the rivets might be of poor quality (irregular shaft, too hard/soft). Try using quality rivets.Q: Can the adapter handle all rivet sizes?A:Do not exceed the product's specified maximum pulling capacity (typically 3.2mm-5.0mm for stainless steel/aluminum rivets).

Pulling oversized rivets can damage the collet.Prohibited Actions:- Never run the tool idle: Do not press the switch without a rivet installed. This will severely wear the collet, preventing it from gripping the mandrel.- Avoid forceful operation: If the adapter becomes loose on the electric gun, tighten it promptly to prevent internal shaft twisting or damage.- Avoid using low-quality rivets: Poor quality rivets with inaccurate dimensions or improper har
