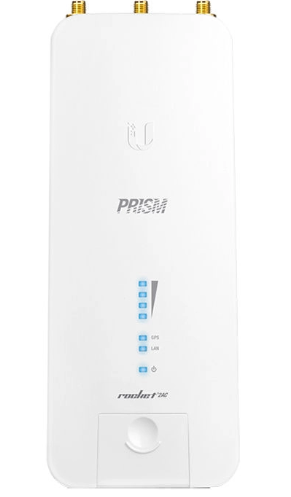

Ubiquiti AirMax Rocket Prism AC 2GHz Radio - R2AC-PRISM

PLEASE NOTE - By default, for powered items, Ubiquiti includes adapter plugs that are not suited for South Africa. In these cases, the wrong adapter plug will carefully be removed from the box and a South African compatible plug will be sent separately.FEATURES Ubiquiti's Rocket 2AC features revolutionary airPrism RF filtering technology and proprietary airMAX ac chipset.

Deploy the Rocket 2AC for PtP or PtMP links using the 2.4 GHz radio band. The Rocket 2ac features a new, high-performance airMAX 2GHz ac radio and airPrism technologies for maximum wireless performance in high-density areas. Pair the Rocket 2ac with airMAX antennas for optimal performance: RocketDish ac Antenna for a PtP backhaul or an airMAX ac Sector for PtMP links.

It delivers coverage of the 2 GHz spectrum between 2412MHz - 2472MHz with a single radio. The Rocket2ac Prism allows for flexibility in configuring channel bandwidths (subject to regulations). Integrated into Ubiquitis custom silicon, airPrism technology creates a high SNR by isolating signals within the operating channel and rejecting interference using specialised circuitry, the High-Selectivity Receiver (HSR) Power Supply: 24V, 0.5A Gigabit PoE Max.

Power Consumption: 8.5W Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range: 18-26VDC Operating Frequency Worldwide: 2412 - 2472 MHz USA: 2412 - 2462 MHz Networking Interface: (1) 10/100/1000 Ethernet Port RF Connectors: (2) RP-SMA (Waterproof ); (1) GPS (Waterproof ) Processor Specs: Atheros MIPS 74Kc, 720 MHz LEDs: Power, LAN, (4) Signal Strength, GPS Signal Strength: LEDs Software-Adjustable to Correspond to Custom RSSI Levels Channel Width Support: 10/20/40 MHz Enclosure Characteristics: Die-Cast Aluminum with White Powder Coating ESD/EMP Protection Air: 24 kV, Contact: 24 kV Operating Temperature: -40 to 70 C Operating Humidity: 5 to 95% Non-condensing Shock and Vibration: ETSI300-019-1.4 Modes: Access Point, Station Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test Distance Adjustment: Dynamic Ack and Ackless Mode Power Adjustment: Software Adjustable UI Security: WPA2 AES Only QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low Statistical Reporting: Uptime, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate Other: Remote Reset Support Software Enabled/Disabled, VLAN Support, 256QAM, GPS, TX Filter PRODUCT SPECIFICATIONS Manufacturer Ubiquiti Model Number R2AC-PRISMG2 Dimensions 88 x 40 x 230mm Weight 400g
