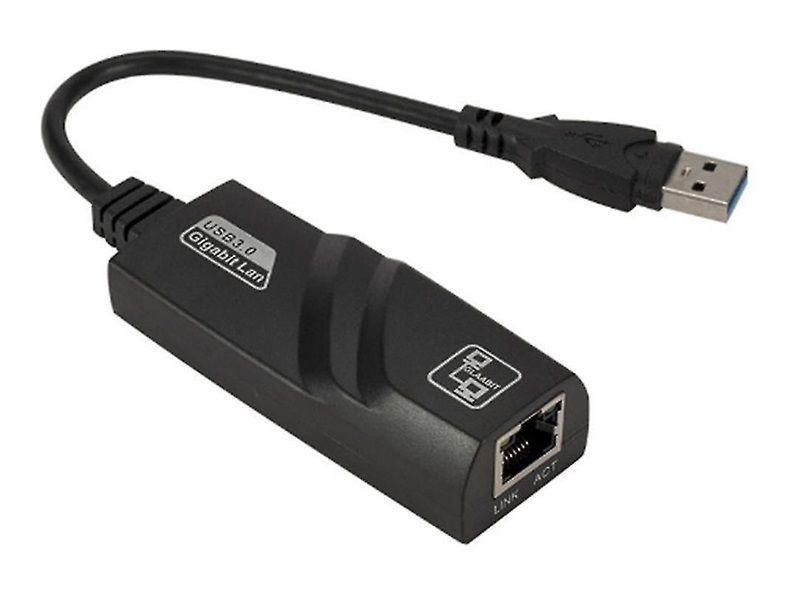

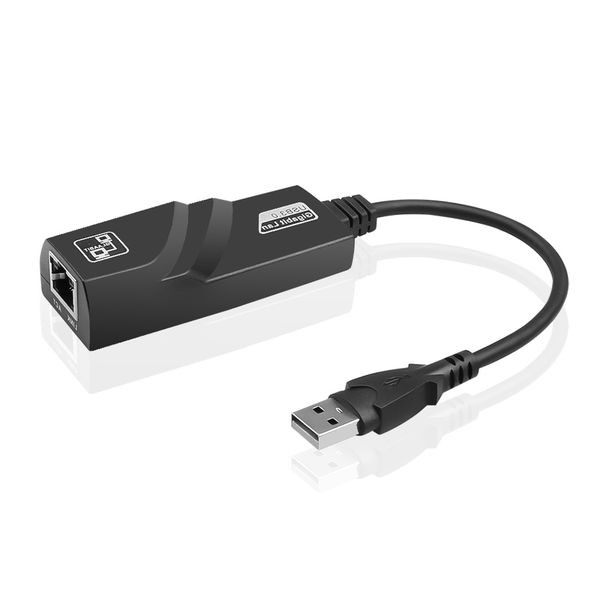

MicroWorld Gigabit USB 3.0 Lan Adaptor

FEATURES Microworld Gigabit USB 3.0 LAN Adaptor Standard:IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.1P, IEEE 802.1Q VLAN tagging IEEE 802.3az-2010 (EEE) Network media:10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP Data rate:10/100M/1000Mbps Interface:USB3.0 Color:Black, white LED Indicator:Link/ACT Dimension:70 x 32.5 x 17mm,USB cable:150mm Support OS Windows 10 8.1 8 32-bit 64-bit Plug in Play Native Driver No installation Needed Windows 7 Vista XP Compatible Environment Operating Temperature: 0 ?-55 ?

Relative Humidity: 10%-90%(non-condensing) Storage Temperature: -0?-80? Relative Humidity: 5%-90%(non-condensing) Other features plug and play Wake-On-LAN Flow control Auto-Negotiation with Next Page capability Selective suspend Remote wake-up ECMA Half Duplex and Full Duplex Mode Hardware Integrated 10/100/1000M transceiver Auto-Negotiation with Next Page capability Supports USB 3.0, 2.0, and 1.1 Supports CDC-ECM Supports LPM (Link Power Management) Supports pair swap/polarity/skew correction Crossover Detection & Auto-Correction Supports Wake-On-LAN and RealWoW! (Wake-On-WAN) Technology (see note 1) Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts (see note 1) XTAL-Less Wake-On-LAN Supports power down/link down power saving Transmit/Receive on-chip buffer support EEPROM Interface Embedded OTP memory can replace external EEPROM Built-in switching regulator and LDO regulator Supports Customizable LEDs Supports hardware CRC (Cyclic Redundancy Check) function LAN disable with GPIO pin Supports 25MHz or 48MHz external clock (from oscillator or system clock source) SPI Flash Interface 48-pin QFN Green package Note 1.

Select between RealWoW! or ECMA, only one feature can be active at a time Software Offload Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support Supports jumbo frame to 9K bytes Microsoft AOAC (Always On Always Connected) Supports 16-set 128-byte Wake-Up Frame pattern exact matching Supports link change wake up Supports Microsoft WPD (Wake Packet Detection) Supports Protocol Offload (ARP & NS) Intel CPPM (Converged Platform Power Management) Supports L1 with 3ms BESL (USB 2.0) Dynamic LTM messaging (USB 3.0) Supports U1/U2 (USB 3.0) Supports selective suspend PRODUCT SPECIFICATIONS Brand Microworld Item model number TXA042 Product Type Adaptor
