| Brand | Unbranded |
| Manufacturer | Major Tech |
| Model Number | 6008229032363 |

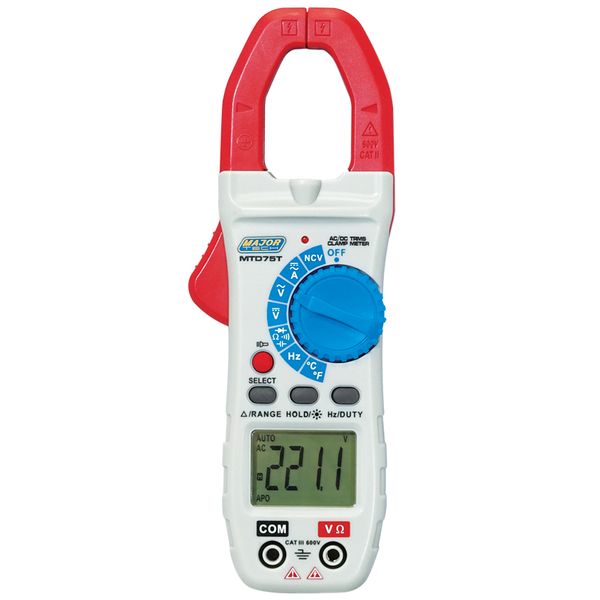

The MTD75T 600A AC/DC TRMS Clamp Meter is a useful tool that allows you to safely test for electrical problems, motors condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Handy features include a backlit LCD display and flashlight for working in dimly lit areas.
The NCV Non-Contact Voltage detector is useful for a quick check to see if voltage is present on circuit under test. Measures 100mA to 600A AC DC, 0.1mV to 600V AC/DC, Temperature, Capacitance, Frequency, Resistance, Continuity buzzer and Diode Test. 28mm Jaw opening and accessories include test leads, temperature air probes and carrying case.
Features: -Measures AC DC Current, AC Volt, DC Volt, Temperature, Capacitance, Frequency and Resistance -Measures current to 600 Amps without breaking the circuit -Resolution to 100mA AC and DC Current -28mm conductor size -6000 count LCD display with backlight -Continuity and buzzer test -Data hold and Duty Cycle function -Auto power off -Low battery indication -CAT III 600V Accessories -Carrying Case -Test Leads -Air Temperature Probes -Instruction Manual Additional Information: DC Voltage: 600mV uF 6V uF 60V uF 600V DC Voltage accuracy: (0.5% + 5d) AC Voltage: 600mV uF 6V uF 60V uF 600V AC voltage accuracy: (1.0% +5) DC Current: 600A DC Current accuracy: (2.0% + 30d) AC Current: 600A AC Current accuracy: (2.0% + 30d) Resistance: 600OHMS uF 6kOHMS uF 60kOHMS uF 600kOHMS uF 6MOHMS uF 60MOHMS Resistance accuracy: (0.8% + 3d) Capacitance: 60nF uF 6uF uF 60uF uF 600uF uF 6mF Capacitance accuracy: (3.5% + 20d) Frequency: 10Hz uF 100Hz uF 1kHz uF 10kHz uF 100kHz uF 1MHz uF 20MHz Frequency accuracy: (0.1% + 3d) Temperature: -40 to 1000C Temperature accuracy: (1.0% + 5C) Continuity: Buzzer sounds at approx. 50OHMS Diode Test: Test current 1mA, open circuit voltage 3V Power source: 2 x 1.5V AAA batteries Dimensions: 185 x 65 x 37mm Weight: 280g What is in the box: 1x MTD75T AC/DC TRMS Clamp Meter uF 600A Carrying Case Test Leads Air Temperature Probes Instruction Manual What's in the box 1x MTD75T AC/DC TRMS Clamp Meter uF 600A Carrying Case Test Leads Air Temperature Probes Instruction Manual
