Ajax Wireless Alarm Starter Kit

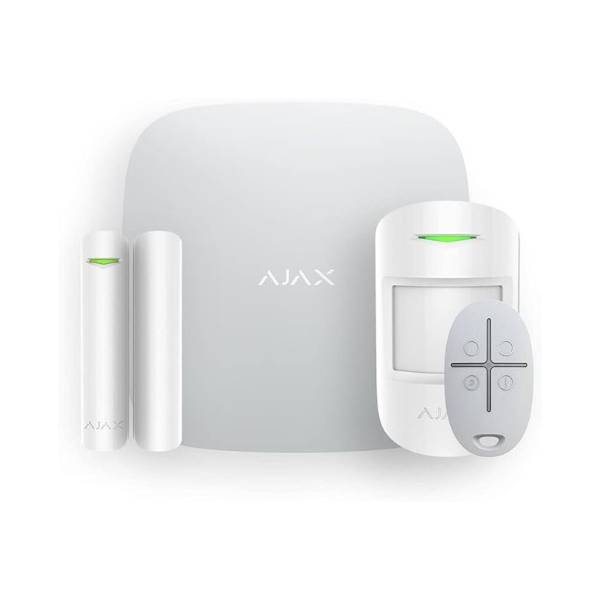

The Ajax Starter Kit is the quickest way to get your wireless Ajax security system up and running. The Hub, the brains of the system, can connect to 100 devices. Allowing you to add additional Ajax devises as and when you require. The kit consists of 1 x Hub, 1 x motion detector, 1 x door detector and 1 x remote with panic button.

The Ajax hub sends signals to your smartphone and monitoring company via the internet (plugs into your router) and/or a sim card.

Principle of operation The sensing detectors detect human presence and opening of the window or door. The hub sends notification of an alarm to the Central Monitoring Station and the system owner's smartphone.

Complete set

• Intelligent control panel
• Wireless motion detector
• Wireless opening detector
• Wireless key fob

• Maximum number of connected devices: 100
• Maximum number of users: 50
• Mobile applications: iOS 9.1 and later, Android 4.1 and later
• Alarm signal delivery: 0.15 s
• Battery: Up to 7 years
• Communication range with central unit — up to 1,700 m in an open space
• Two-way communication between devices
• Operating frequencies — 868.0—868.6 MHz
• Self-adjusting RF output power — up to 20 mW
• Block encryption based on AES algorithm
• Device polling period — 12−300 s
• Communication channels: Ethernet, GSM (850/900/1800/1900 MHz)
• SIM card support: Micro SIM 2G
• Mains supply: 110−250 V
• Up to 15 hours of offline operation when Ethernet is switched off
• Video surveillance
• Up to 10 cameras or DVRs
