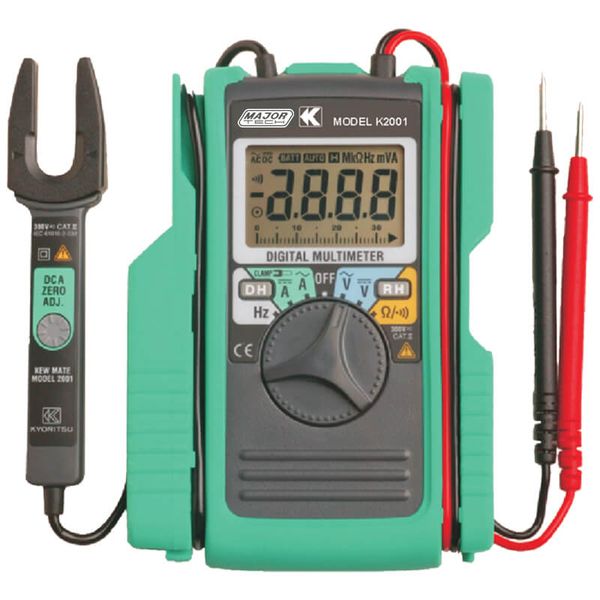

Major Tech K2001 100A Ac dc Clamp Meter & Dmm

The K2001 is the first of its kind to have all the functions of a multimeter and include AC and DC current measurements up to 100 Amps with an "Open Clamp Sensor". This integrated instrument is ideal for use when testing and measuring current loops of PLC's. The K2001 has a 3399 count display and incorporates a 33 segment Bargraph, and comes complete with a rubber holster.

The pocket size of the K2001 becomes handy for Electrical Engineers, Inspectors and Maintenance Electricians to carry around with them, as it is always readily available for quick tests. Features: - Open Clamp Jaw 10mm - 100A AC/DC - 600V AC/DC - Resistance 34M ohm - Frequency 10kHz - Current Auto range Specifications: - 300kHz - Voltage Dimensions 128 x 87 x 24mm - Weight 220g - Enclosure Rubber Holster - Input Impedance less than 10M ohm VDC & less than 10M ohm VAC - Over-range indication - Power source 2 x R03 - Safety Specs IEC61010-1 CatIII 300V - DC Voltage 600V - DC Voltage accuracy +/- (1.5% +4) - AC Voltage 600V - AC voltage accuracy +/- (1.5% +5) - DC Current 100A 10mm - Resistance 34M ohm - Resistance accuracy +/- (1.0% +3) - Digital Display 3400 - AC Current 100A 10mm - AC Current accuracy +/- (2.0% +5) - DC Voltage resolution 0.1mV - AC Voltage resolution 1mV - Frequency 300Khz - Duty Cycle 0.1 to 99.90% - Frequency resolution 0.001kHz - Frequency accuracy +/- (0.1% +1) - AC current resolution 0.1A - Resistance resolution 0.1 ohm - DC Current resolution 0.1A - DC Current accuracy +/- (2.0% +5) - Duty Cycle accuracy +/- (1.2% +2) - Continuity + Buzzer - Data Hold - Low battery indication - Bargraph What's in the box Instruction Manaul
