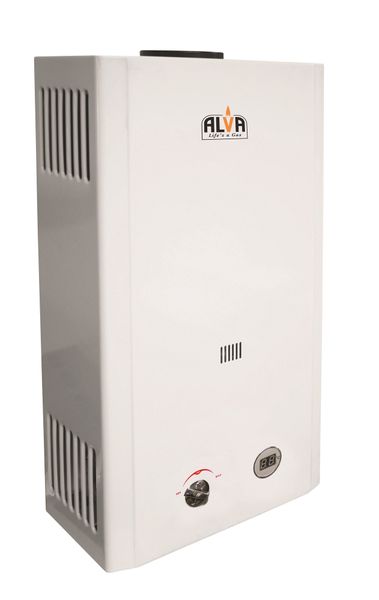

Alva Gas Water Heater 12L Hi low Pressure 2.4KG

This product requires professional installation by an LPGSASA approved technician. Failure to do so voids the warranty and is illegal
The 12L model is recommended for a single tap sink, bath or basin
We make this water heater so that you are able to heat water for domestic use safely, conveniently and virtually instantly - using a minimal amount of energy
Your world is better with Alva

This 12L model is best suited for use in a kitchen/bathroom sinks & for showers

FOR YOUR OWN SAFETY:
Before using this appliance please read through the instruction manual & make sure you understand everything.

If you are not sure, please call 086 100 2582 or visit www.alva.co.za for help.
Always operate this product according to its instructions. It is illegal & dangerous to modify any part of this appliance.
This product is not intended for use in conjunction with a water tap mixer, & must only be installed to a cold water supply.

FEATURES
Digital LED temperature display
Gas flow regulation control knob
Pulse ignition
Power Supply: 2x D Batteries - NOT INCLUDED
Heat Output: 24kW
Water Input: 12 L/min
Gas Consumption: 1.78 kg/hr at max
Suitable Water Pressure 0.025-0.5 MPa
Water flow regulation control knob. (control min & max water flow rate)
Operating pressure 2.8kPa
Exhaust Discharge Mode: Flue Duct Type - NOT INCLUDED
[[ Code: BA186 Alva Flue Sold Separately]]
SANS 1156 8mm Gas Hose - NOT INCLUDED
Size of each Jet 0.71mm
Water Heater Type: B (For indoor & outdoor use)
Recommended cylinder size 9Kg & above
Regulator not supplied with the unit
12 Month warranty
LPGSASA approved: In Accordance with: SANS 1539, SANS 1237, SANS 1156 (appliance & hose)

Unit weight: 9.15kg
Unit Dimensions: 17 x 34.5 x 61 cm
Shipping Unit Weight: 10.15kg
Shipping Unit Dimensions: 70.5 x 40 x 25 cm (LxWxH)

What's in the box
1x 12L Gas Water Heater
2x Wall mounting screws & 1x water hose connector fitting
1x Assembly instructions

SAFETY FEATURES
Water controlled automatic ignition: If the hot water tap is turned on, the unit will automatically ignite & deliver hot water from the tap water outlet.
Auto cut-off protection: (1) The auto cut-off protection will extinguish the gas supply immediately if the water supply is too low (less than 12L /min or the unit overheats (water hotter than 85C). (2) Unit will shut down the gas supply within 4 minutes when used without a flue.
Low water pressure start-up function: When water supply pressure is lower than 0.025Mpa, the water heater cannot be ignited.

Fit water pressure pump to boost pressure.
Anti-freeze protection: When temperature is very low, remove the water discharge valve to discharge accumulated water inside the water pipe to avoid damage caused by freezing when the water heater is not in use.
High-pressure protection: Once water pressure is over 0.8Mpa, the water discharge valve will release water & lower the pressure.

This will happen automatically to avoid damage.
